Product Summary

The SHARP LQ9D011 Color TFT-LCD module is an active matrix Liquid Crystal Display (LCD) incorporating amorphous silicon Thin Film Transistor (TFT). The LQ9D011 module is composed of a color TFT-LCD panel, driver ICs, control circuit, and a power supply circuit. Graphics and text can be displayed on a 640 × 3 ×480 dot panel in 512 colors by supplying a 9-bit data signal, four kinds of timing signals, +5 VDC, and supply voltage for the backlight. Optimum viewing angle is at the 6 o clock direction.

Parametrics

LQ9D011 absolute maximum ratings: (1)Input Voltage tA = 25℃: –0.3 to VCC +0.3 V; (2)+5 V Supply Voltage: – 0 .3 t o + 7 V; (3)Storage Temperature: –25 to +60 ℃; (4)perating Temperature (Ambient): 0 to +50℃.

Features

LQ9D011 features: (1)Display Diagonal: 8.4; (2)Display Format: 640 × 480(1 Pixel = R + G + B Dots); (3)Overall Dimensions: 243.5 (W) × 180 (H) × 12 (D) mm(Excludes Backlight Cables); (4)Active Area: 170.88 (W) × 129.6 (H); (5)Dot Pitch: 0.267 (W) × 0.27 (H) mm; (6)Viewing Angle: 6 O Clock; (7)Pixel Configuration: R, G, B Vertical Stripe; (8)Display Mode: Normally White.

Diagrams

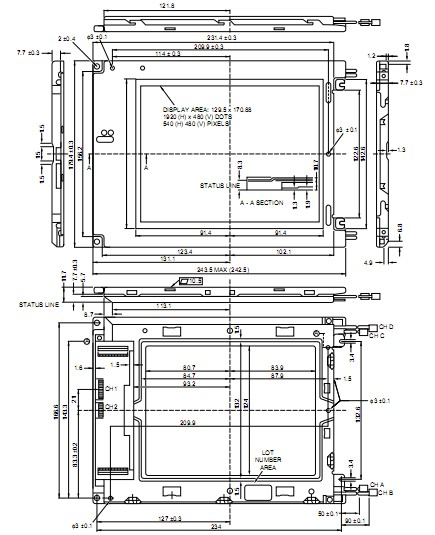

LQ9D011 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

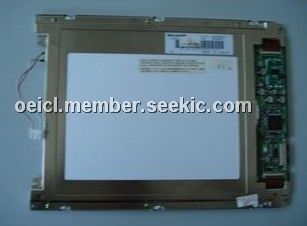

LQ9D011
LQ9D011

Other


Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LQ9D011
LQ9D011

Other


Data Sheet

Negotiable
LQ9D340
LQ9D340

Other


Data Sheet

Negotiable
