Product Summary

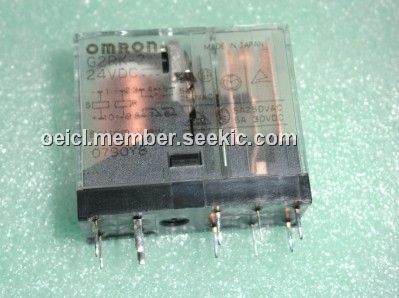

The G2RK-2-DC24V is a power relay for a Variety of purposes with various models.
Parametrics
G2RK-2-DC24V absolute maximum ratings: (1)Rated voltage: 24 VAC; (2)Rated current, 50 Hz: 46.5 mA; (3)Rated current, 60 Hz: 37.5 mA; (4)Coil resistance: 260Ω; (5)Must operate voltage 80% max. of rated voltage; (6)Must release voltage 30% min. of rated voltage; (7)Max. voltage 140% of rated voltage (at 23?C); (8)Power consumption Approx. 0.9 VA at 60 Hz (approx. 0.7VA at 60 Hz).
Features
G2RK-2-DC24V features: (1)Conforms to VDE0435 (VDE approval: C250 insulation grade), UL508, CSA22.2, SEV, SEMKO; (2)Meets VDE0700 requirements for household products according to VDE0110; (3)Clearance and creepage distance: 8 mm/8 m; (4)Models with CTI250 material available; (5)High-sensitivity (360 mW) and high-capacity (16 A) types available; (6)Double-winding latching type available; (7)Plug-in with test button and quick-connect terminals available; (8)Highly functional socket available.

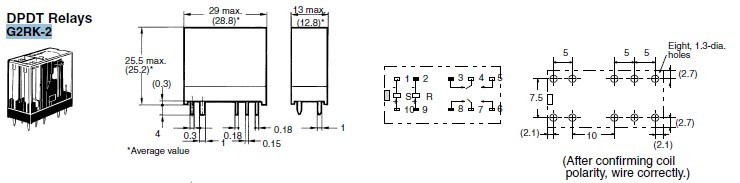

Diagrams
 |
