Product Summary

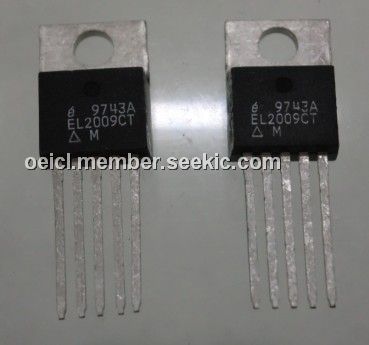

The EL2009CT is a patented high speed bipolar monolithic buffer amplifier designed to provide currents over 1 amp at high frequencies, while drawing 40 mA of quiescent supply current. It has an output short circuit current limit which will protect the device under both a DC fault condition and AC operation with reactive loads. The applications of the EL2009CT include: video distribution amplifier, fast op amp booster, flash converter driver and so on.
Parametrics
EL2009CT maximum ratings: (1)Supply Voltage: ±18V or 36V; (2)Input Voltage: ±15V or VS; (3)IIN Input Current: ±50 mA; (4)Operating Temperature Range: 0℃ to +75℃; (5)Operating Junction Temp.: 175℃; (6)Storage Temp. Range: -65℃ to +150℃; (7)Lead Solder Temp. ＜10 seconds: 300℃.
Features
EL2009CT features: (1)High slew rateD3000 V/μs; (2)Wide bandwidth:125 MHz @ RL= 50Ω, 90 MHz @ RL= 10Ω; (3)Output current=1A continuous; (4)Output impedance: 1Ω; (5)Short circuit protected; (6)Power package with isolated metal tab.

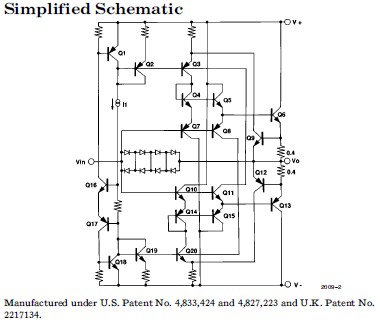

Diagrams
 |
