Product Summary
The DRT2-TS04P is a Temperature Input Terminal with Smart Functionality.
Parametrics
DRT2-TS04P absolute maximum ratings: (1)Current consumption: 70 mA max. at 24 VDC; (2)Noise immunity Conforms to IEC61000-4-4: 2.0 kV; (3)Vibration resistance: 10 to 150 Hz, 0.7-mm single amplitude; (4)Shock resistance: 150 m/s2; (5)Dielectric strength: 500 VAC (between isolated circuits); (6)Insulation resistance: 20 MΩ min. (initial value) at 100 VDC; (7)Ambient operating temperature: -10 to 55℃ (with no icing or condensation).
Features
DRT2-TS04P features: (1)mbient operating humidity 25% to 85%; (2)Ambient storage temperature -25 to 65℃; (3)Mounting method DIN 35 mm-track mounting; (4)Mounting strength 50 N; (5)10 N (in the DIN Track direction); (6)Screw tightening torque M3: 0.5 N·m; (7)Terminal strength No damage when 50 N pull load was applied; (8)Weight 160 g max.

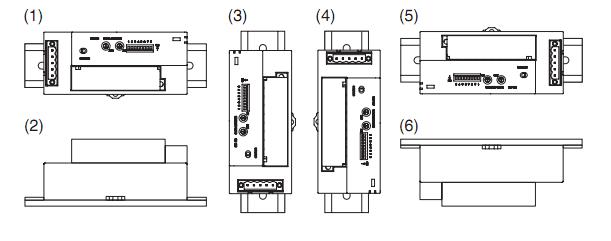

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DRT2-TS04P |
|
4PT DRT2 PLATINUM RESISTANCE |
Data Sheet |
|
|
||||||||||||
